Lab setup – AlwaysOn AGs in a Multi Subnet Cluster – Part 2

In part1, I’ve shown how to create a windows cluster in a multi subnet setup.  In this post let’s see how to create a AG and corresponding listener.

In my lab, I will be creating two AGs and two corresponding listeners.

Details:
I’ve two databases – > sales and customers.
Two AGs – > Sales_AG and Customers_AG.Two Listners – > sqllst_Sales and sqllst_Cust.
For sales AG, I’ve disabled “Database level health detection”, a new feature introduced in SQL 2016.

AG1

ag2

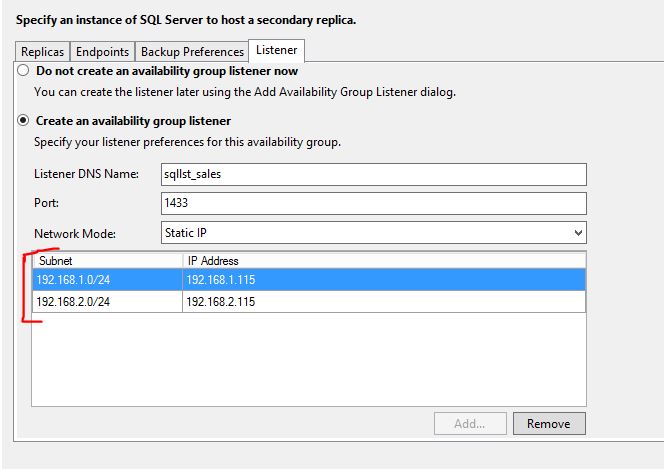

Now, for Listener two IPs from both subnets have been provided.

ag3

ag5

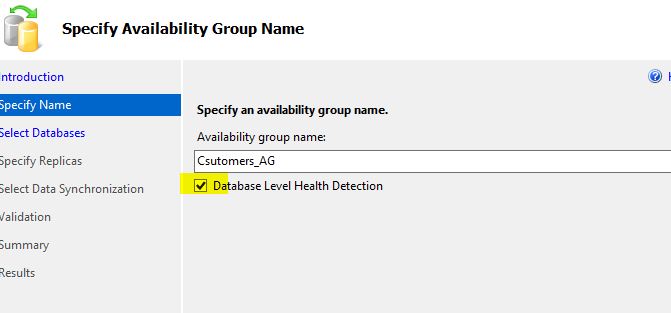

Same process has been followed for creating customers AG and listener as well(But this time I’ve enabled Database level health detection).

ag4

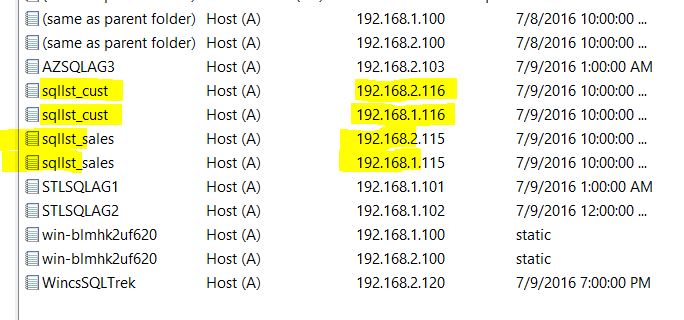

Since this is a multi-subnet setup two entries(one from each subnet) will be created in DNS for each listener name as shown below.

ag_final

That’s about it folks.
